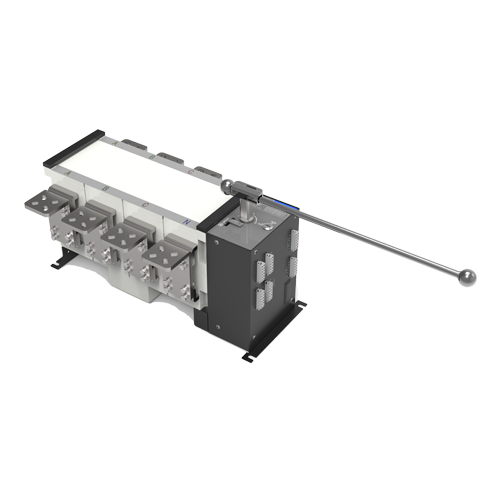

SmartGen SGMA-1000A/4P (ATS Type) Motor type ATS switch

* All prices on this website are retail in USD on EXW incoterms


Technical Parameters:
Poles(P) 4P/3P
Rated Current 1000A
Rated Working Volt. AC400V
Motor Working Volt. AC220V (175-277)V
Rated Insul. Volt. Main Circuit AC800V
Rated Impulse Volt. Main Circuit 8 kV
Category AC-33iB
Short-time Withstand Current 32 kA/60ms
Rated SC Ability 67.5kA
Mechanical Life 3000 times
Electrical Life 500 times
Electrical Life 500 times
Working Temperature (-25~+70)ºC
Working Humidity (20~90)%RH
Installation Height ≤2000m

Product Overview:

SGMA800~3200A series dual power ATS applies to the system which requires AC400V 50/60Hz below, rated working current 800A~3200A. Its structure is motor driven type, and there are three positions for the switch: normal (Ⅰ), spare (Ⅱ) and off (0). It can be used in the occasions where power failure is not allowed, such as high-rise buildings, medical heath, post and telecommunications, coal mine and ships, rail traffic, military and fire facilities.

This series products comply with the standard of GB GB/T 14048.11 ”Low-voltage switchgear and  controlgear --- part 6-1: Multiple function equipment ----Transfer switching equipment”.


SGMA800~3200A series dual power ATS adopts two-in and one-out structure, with electric key lock and mechanical padlock. Electric key lock: control the internal power supply of the switch, when the electric lock is open, the switch acts the automatic and remote operations; when the electric lock is closed, the switch only acts the manual operation. Mechanical padlock: during maintenance, pulling up the mechanical padlock to cut off the internal power supply of the switch, so the electric and manual operations of the switch will be disabled, which ensures the personal safety.
