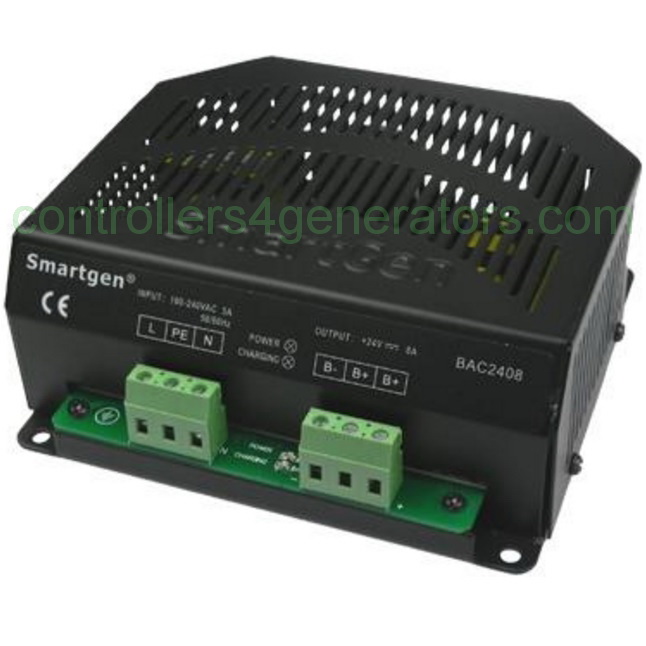

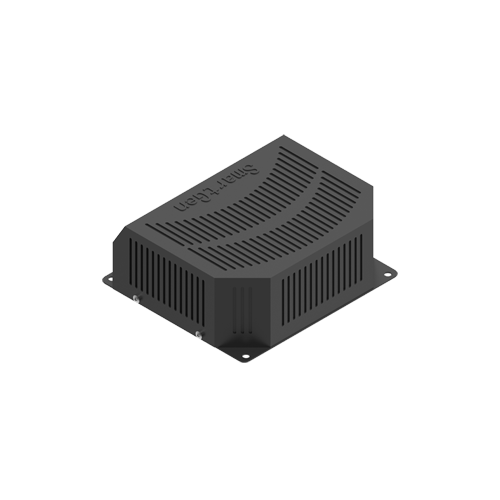

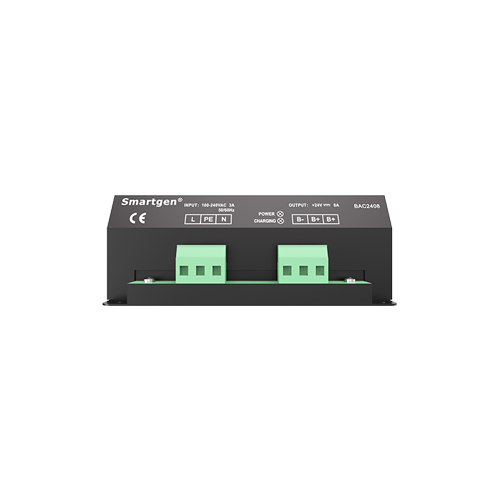

SmartGen BAC2408 (24V8A) Battery Charger, Floating charge, two-stage charge, Power factor compensation

Technical Parameters:
Battery Voltage  24V
Max. Charging Current  8A
Rated Input Voltage  (100~240)V
Max. Input Voltage Range  (90~280)V
AC Input Frequency  (50/60)Hz
Max. Input Current  3A
No-Load Power Consumption  <3W
Power Factor Compensation  ●
Operating Mode  Two segments
Maximum Efficiency  90%
Net Weight(kg)  0.9
Case Dimensions(mm)  145.5*131*55

Product Overview:
Fit with up-to-date power supply device, float charger BAC2408 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 24V lead-acid batteries.

PERFORMANCE AND CHARACTERISTICS:
1. Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;
2. Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
3. Built-in PFC circuit can calibrate the power factor above 0.99;
4. Built-in current protective circuit for short-circuit protection and reverse connection protection. If failure occurs, power indicator and charging indicator will flash rapidly;
5. Suitable for 24V storage battery and the rated current is 8A;
6. LED display: Power indication (Green light) and charging indication (Red light)
